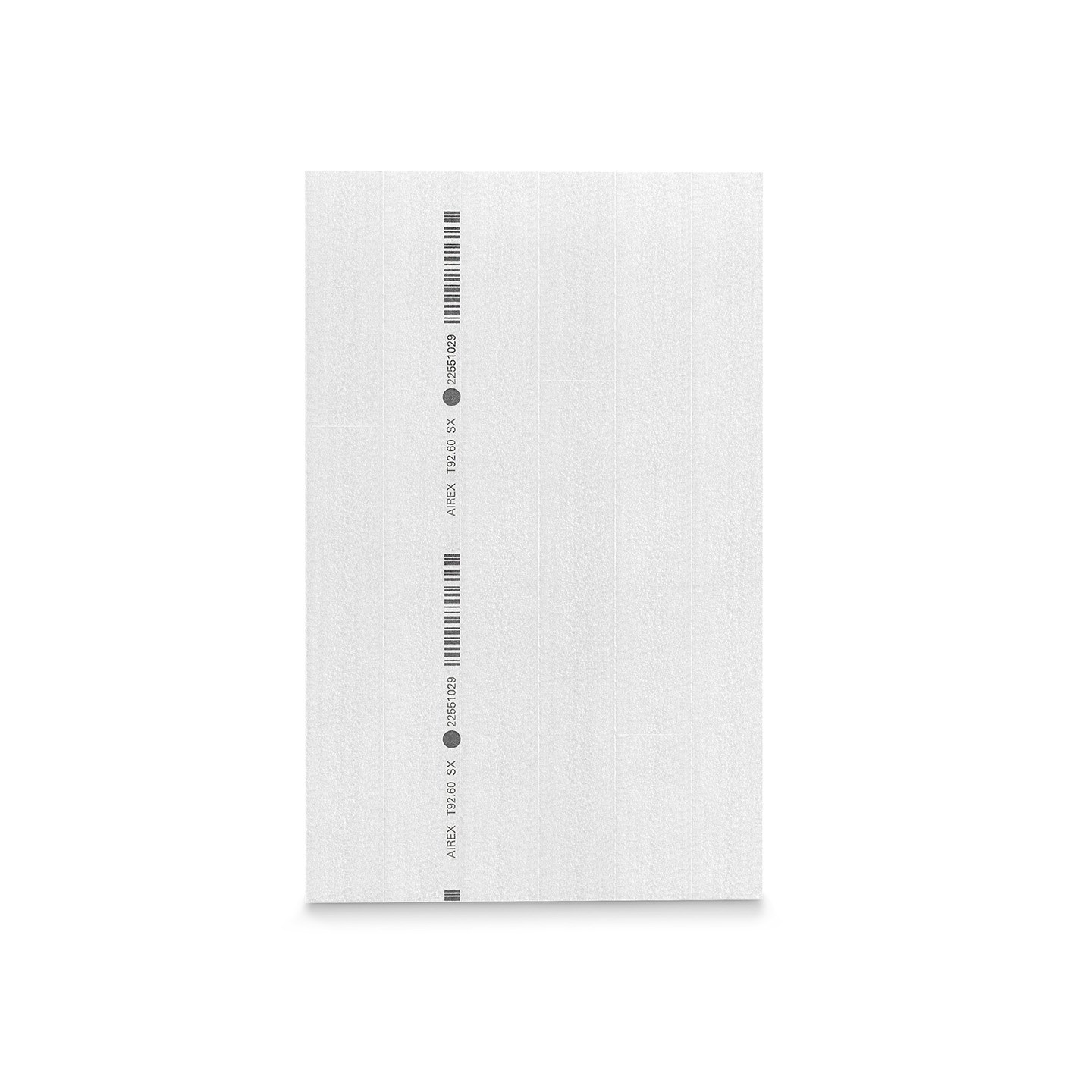

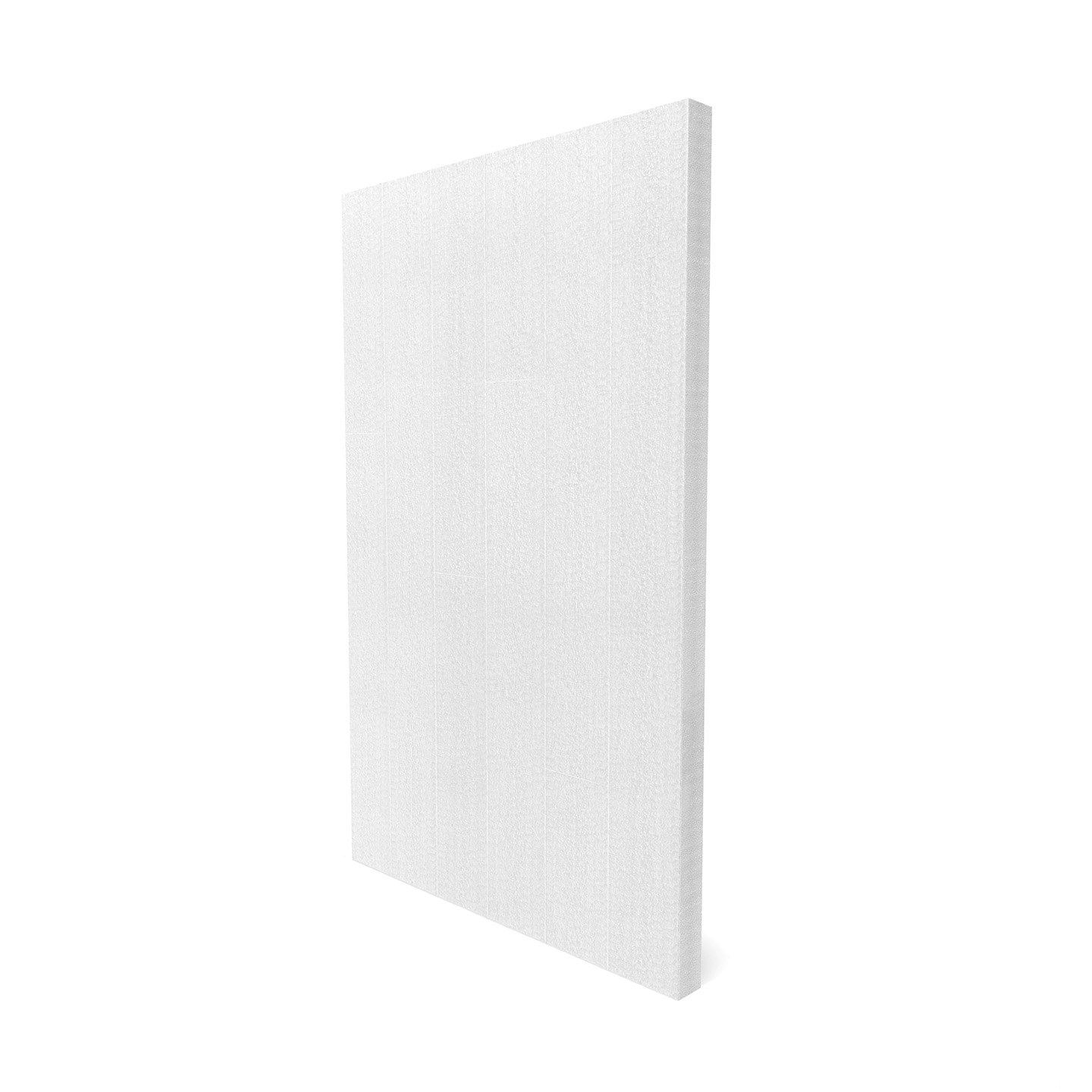

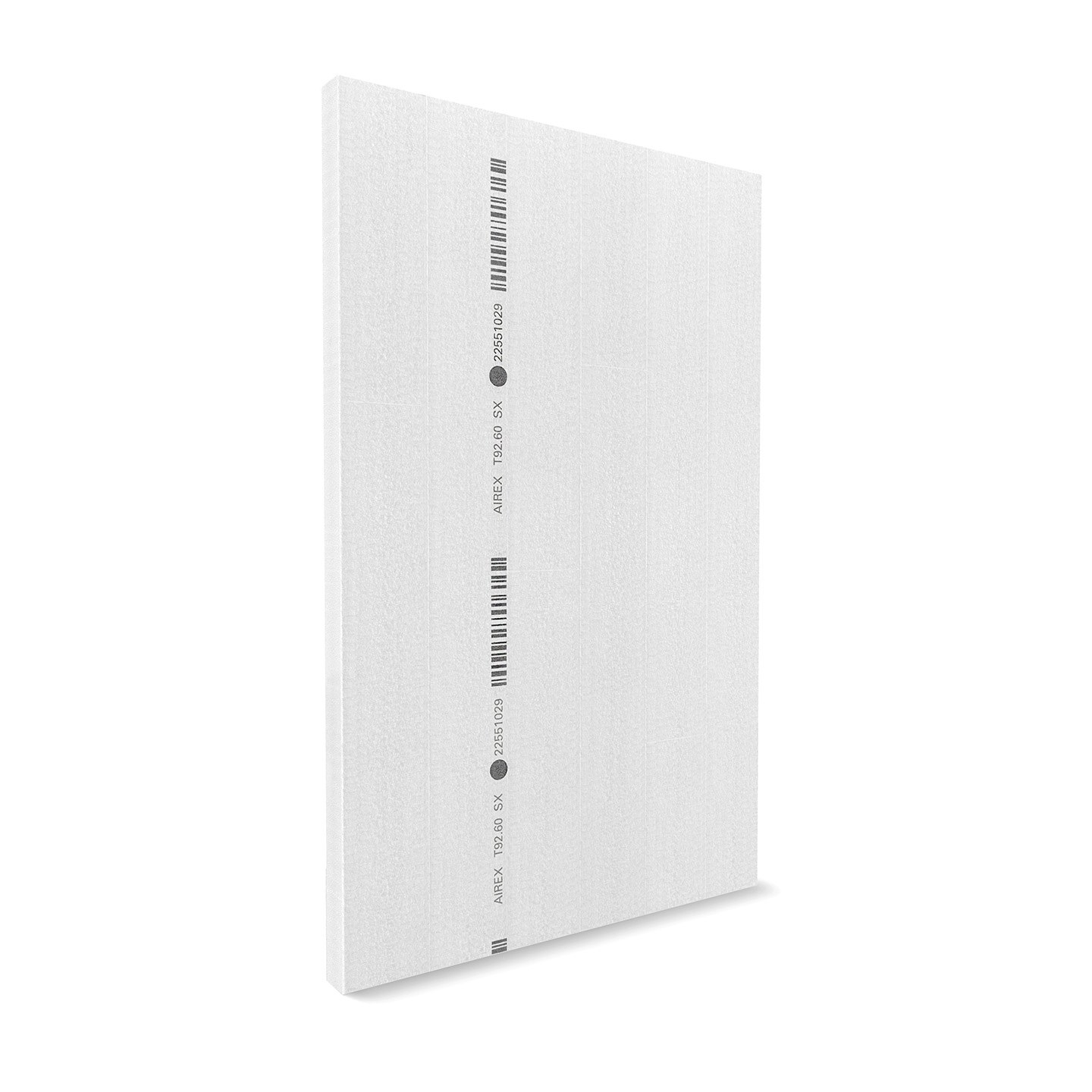

AIREX® TK90 and TK92

AIREX® TK90 and TK92
AIREX® TK90 and TK92
AIREX® TK90 and TK92
AIREX® TK90 and TK92

AIREX® TK90 and TK92

(60 - 200 kg/m3 | 3.7 - 12.5 lb/ft3)

  • - high thermal insulation
  • - excellent mechanical properties
  • - very good screw retention at higher densities
  • - fire retardant grade AIREX® TK90
  • - recyclable and recycled material

Properties

  • high thermal insulation (starting at 0.026 W/mK) – long-time stable insulation properties due to no water absorption even after decades and under high humidity
  • excellent mechanical properties, static and in fatigue loading
  • very good screw retention at higher densities
  • excellent long-term thermal stability up to 100 °C / 212 °F (short term up to 180 °C / 356 °F)
  • fire retardant grade AIREX® TK90
  • no water/humidity absorption, no rot
  • low vapor permeability
  • dimensionally stable, also under water
  • resistant to chemicals and alkali
  • recyclable and recycled material (up to 100 % recycled PET)
  • highly consistent material properties independent from variance in color
  • biologically inert, non-toxic

Applications

  • Building & Construction: Balconies, facades, beams, bridges, walkways, window profiles, window/brickwork interface, door and windowsills, panels for thermal and acoustic insulation, structural roofs/domes

Processing

  • Contact molding (hand/spray)
  • Vacuum infusion
  • Resin infusion / injection (VARTM / RTM)
  • Adhesive bonding
  • Prepreg processing
  • Compression molding (GMT, SMC)
  • Thermoformable
```
